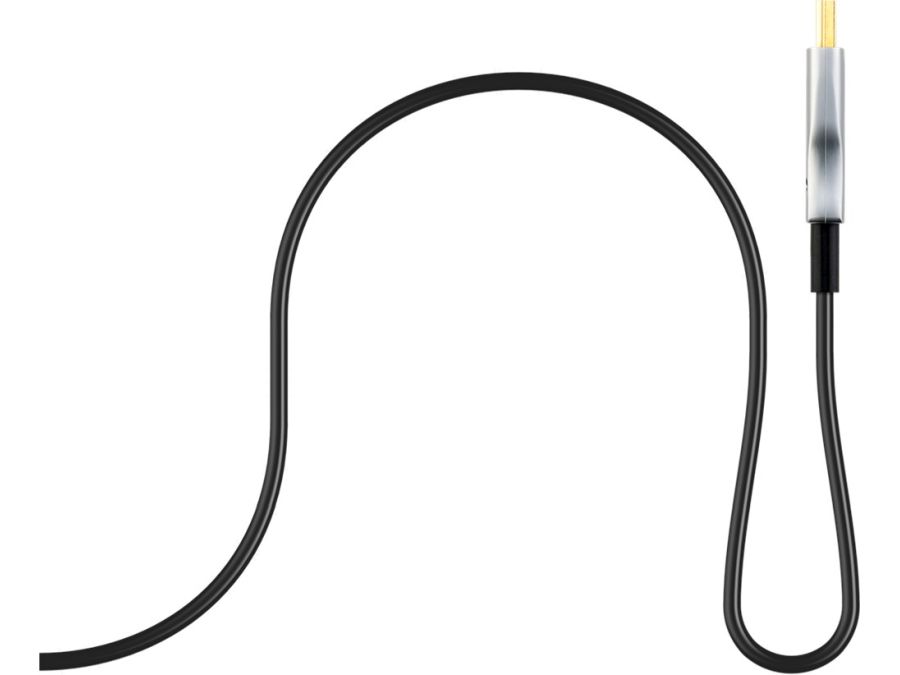

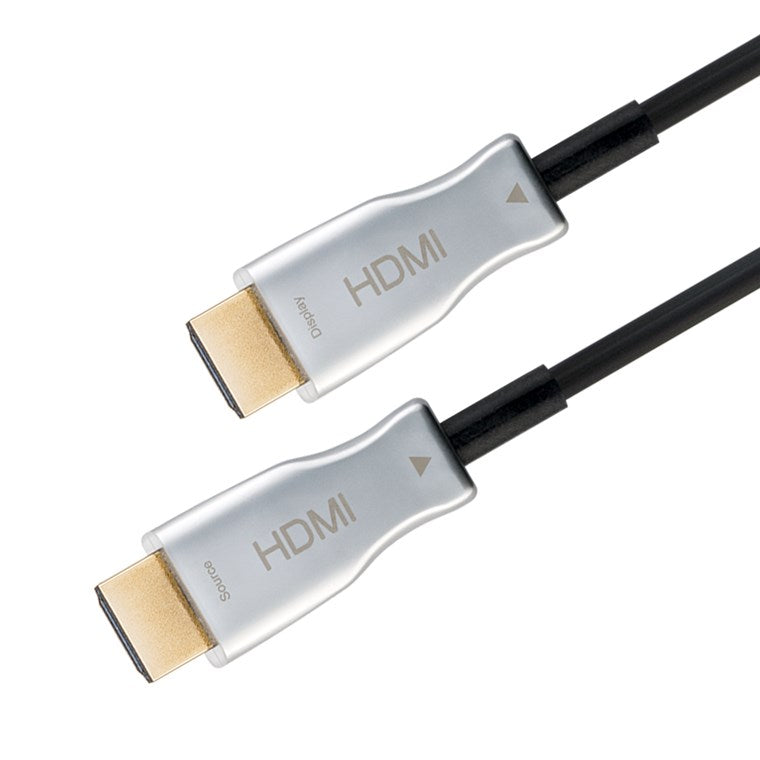

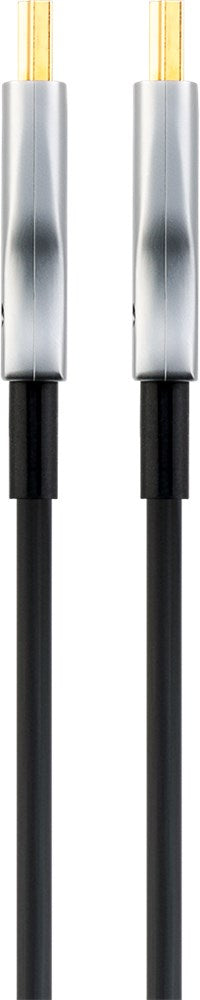

Optisk Hybrid HDMI 2.0 kabel - 2 x HDMI A han, Sort (30m)

Dette optiske Hybrid HDMI-kabel (fiberoptisk + kobber) forbinder enheder over lange afstande på op til 100m uden tab af data - selv i områder med høje niveauer af elektromagnetisk stråling. Den specielt tynde og lette konstruktion gør den perfekt til alle slags installationer.

Egenskaber:

• Maksimal opløsning på 4K ved 60Hz, YUV 4: 4: 4
• HDCP 1.4 / 2.2 kompatibel
• Understøtter HDR, ARC, HEC, EDID og CEC
• Fleksibel glasfiber med lille bøjningsradius (20 mm)
• Plug and play: Ingen ekstern strømforsyning kræves

Tekniske detaljer:

• Stikforbindelser:
  • Stik 1: HDMI-A (han)
  • Stik 2: HDMI-A (han)
  • Stikhus højde: 8,5mm
  • Stikhus bredde: 18,5mm
  • Stikhus længde: 37,9mm
• Stikhusmateriale: Metal
• Kontaktmateriale: Forgyldt

Kabel:

• Kabeltype: Rundt kabel
• Kabellængde: 30 m
• Kabeldiameter: Ø4,3mm
• Indvendigt ledermateriale: Hybrid (glasfiber og metal inderleder)

Signal transmission:

• Maks. transmissionshastighed: 18 Gbit/s
• Understøttede lydstandarder: Audio Return Channel (ARC)
• Understøttede farverum: Deep Color (30 Bit), sRGB, xvColour (xvYCC), YCbCr 4: 4: 4
• Andre understøttede standarder: 21: 9 Cinemascope, 4K 3D, Consumer Electronics Control (CEC), HDMI Ethernet Channel (HEC), HDR (High Dynamic Range)

Generelt:

• Maks. opløsning: Ultra HD (4K) 2160p ved 60 Hz
• Farve: Sort
• Operatinonel temperatur: 50°C

The optical Hybrid HDMI cable (fiber optic + copper) connects devices across long distances of up to 100 m without data loss - even in areas with high levels of electromagnetic radiation. Its particularly thin and light construction makes it perfectly suitable for all kinds of installations.

Features:

• Maximum resolution of 4K@60Hz, YUV 4:4:4
• HDCP 1.4/2.2 compatible
• Supports HDR, ARC, HEC, EDID and CEC
• Huge cable length without gain or signal conditioning
• Flexible glass fibre for small bending radius (20 mm)
• Plug and play: no external power supply required

Specifications:

• Connections:
  • Connection 1: HDMI-A male
  • Connection 1 height: 8.5 mm
  • Connection 1 width: 18.5 mm
  • Connection 1 length: 37.9 mm
  • Connection 2: HDMI-A male
  • Connection 2 height: 8.5 mm
  • Connection 2 width: 18.5 mm
  • Connection 2 length: 37.9 mm
  • Connection housing material: metal
  • Connection contact material: gold-plated
• Cable:
  • Cable type: round cable
  • Cable length: 30 m
  • Cable sheath diameter: 4.3 mm
  • Inner conductor material: Hybrid (Fibreglass and Metal inner conductor)
• Signal transmission:
  • Max. transmission rate: 18 Gbit/s
  • Supported audio standards: Audio Return Channel (ARC)
  • Supported colorspaces: Deep Color (30 Bit), sRGB, x.v.Colour (xvYCC), YCbCr 4:4:4
  • Other supported standards: 21:9 Cinemascope, 4K 3D, Consumer Electronics Control (CEC), HDMI Ethernet Channel (HEC), HDR (High Dynamic Range)
• General:
  • Max. resolution: Ultra HD (4K) 2160p@60 Hz
  • Color: black
  • Operating temperature up to: 50°C
