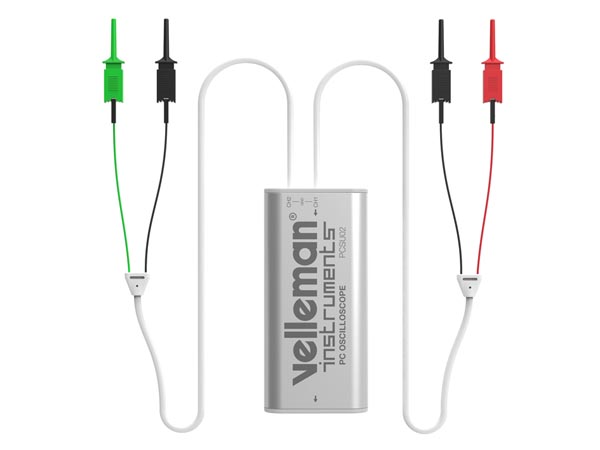

Mini 2 kanal PC USB oscilloskop

Oscilloskoper er dyre og komplicerede instrumenter? Ikke denne! Dette lille og brugervenlige 2-kanals oscilloskop har alle de nødvendige funktionerne, og det har også en båndbredde på 500kHz ± 3 dB! Komplet med instruktioner (download), testledninger og software (download) og det kommer i et designkabinet.

Egenskaber:

• Testledninger
• Software download
• USB-kabel medfølger
• Designkabinet

Tekniske detaljer:

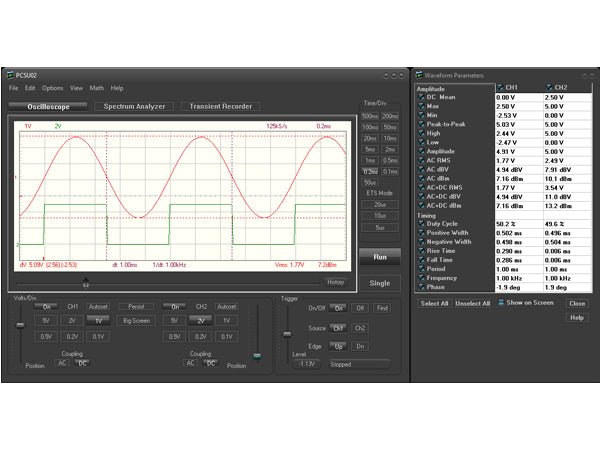

• Oscilloscope:
  • Bandwidth: DC to 2 x 500 kHz ±3 dB
  • Input impedance: 100 kO /20 pF
  • Maximum input voltage: 30 V(AC + DC)
  • Time base: 5 µs to 500 ms per division
  • Input range: 100 mV to 5 V/division
  • Input sensitivity: 3 mV display resolution
  • Readouts: true RMS, dBV, dBm, p to p, Duty cycle, Frequency…
  • Record length: 2 x 1k samples
  • Sampling frequency: 50 Hz to 2.5 MHz
  • Sample history function
  • Auto set-up function
  • Pre-trigger function: on 50 µs/div .. 500 ms/div ranges
  • Persistence options: colour graded, variable and infinite

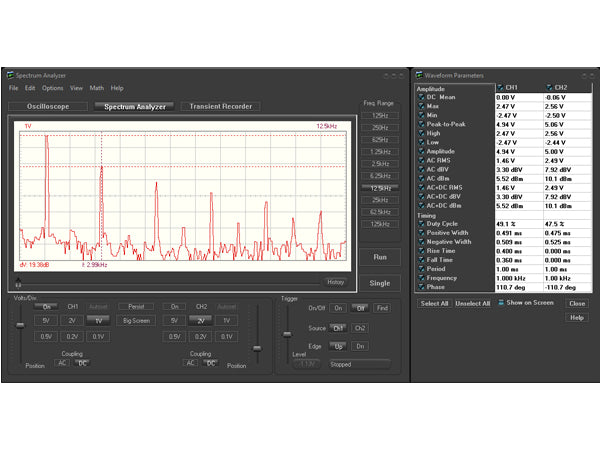

• Spectrum analyser:
  • Frequency range: 0 .. 125 Hz to 125 kHz
  • Operating principle: FFT (Fast Fourier Transform)
  • FFT resolution: 512 lines

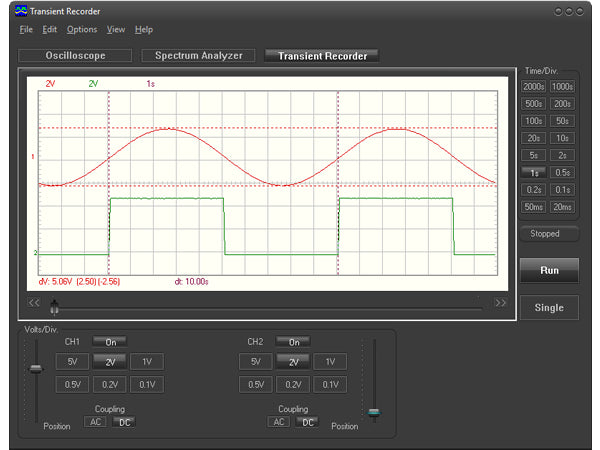

• Transient recorder:
  • Time scale: 20 ms/div to 2000 s/div
  • Max. recording time: 9.4 h/screen
  • Automatic storage of data
  • Record and display of screens
  • Max. number of samples: 100/s
  • Min. number of samples: 1 sample/20 s
• general information:
  • Markers for: amplitude/voltage and frequency/time
  • Input coupling: DC and AC
  • 8 bit resolution
  • Storage of display and data
  • Dimensions: 85 x 40 x 14 mm
• Minimum system requirements:
  • Windows® XP, Vista, 7, 8 and 10
  • Mouse (or mouse pad)
  • Free USB port 1.1 or 2.0
