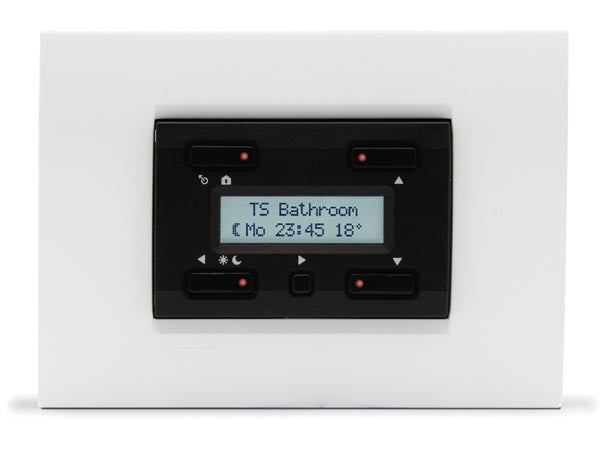

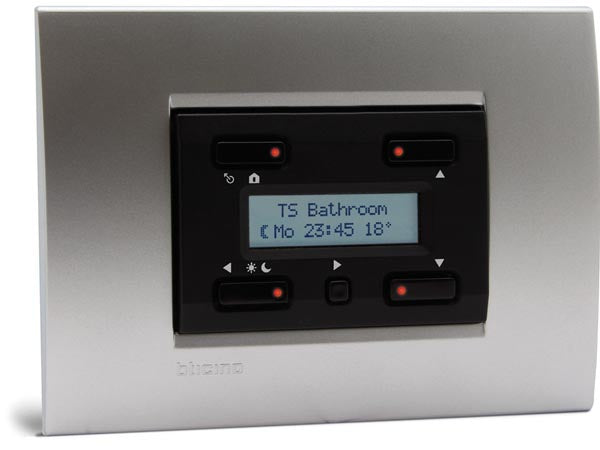

VELBUS - Temperaturstyring, Sort

This Velbus temperatur controller is the heart of your heating eller air-conditioning system. It works together with at least one VMB1TS Velbus temperatur sensor (se tilbehør). Se vores GETTING STARTED MANUAL for hurtig installation og brug. The controller can monitor og adjust the temperatur from op til 32 sensors. A group of temperatur sensors can be configured as temperatur zones (e.g. Upstairs, Downstairs..). On their turn, a Velbus relay contact will drive the heating/air-conditioning (Electric/valve/pump..)

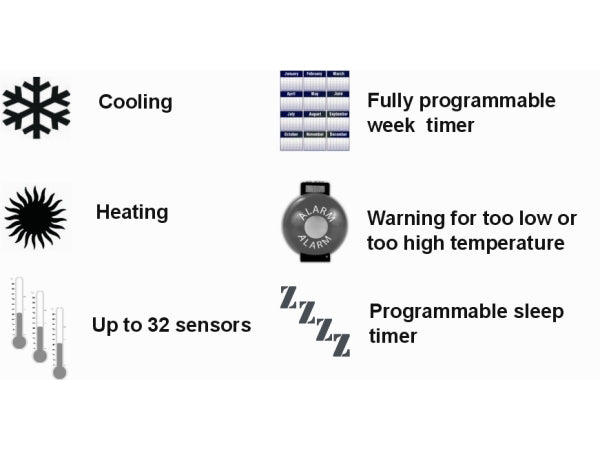

Egenskaber:

• Multi-language menu (EN/FR/DE/ES/NL)
• Label for each sensor (max 16 characters)
• One button direct sensor access
• Up til 32 sensors per controller
• zone creation (max 7)
• Night / Day eller Comfort setting
• Programmable week/day timer, 31 steps per sensor
• Wake-up funktion with automatic heating option
• Sleep funktion (temporary program override)
• Cooling eller heating option
• Multiple temperatur alarms (anti freeze, anti overheat...)
• Celsius eller Fahrenheit display
• Adjustable hysteresis
• History: min./maks. temperatur og total activated time
• Low backup batteri indication
• Pin code protection for configuration menu
• 2 lines 16CH LCD with white LED backlight

Tekniske detaljer:

• Strømforsyning: 12VDC...18VDC
• Heating range: 0° til 54° (default from 16° to 36°)
• Cooling range: 0° til 54° (default from 5° til 30°)
• Local eller PC configuration (VelbusLink + interface)
• Backlight timer option
• Strømforbrug: 50mA (backlight ON)
• Battery backup: 1x CR2032 (included)
• Communication: Velbus protocol

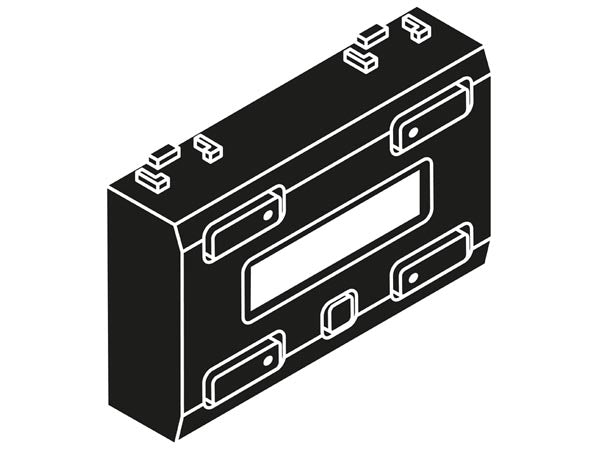

• Størrelse (WxHxD): 66 x 44 x 40mm (w.o. cover plate)
• Rammer: MBFDG eller VMBFLG (se tilbehør
