HD CCTV Hybridoptager, 16 kanal, TVI/CVI/AHD/Analog/IP, 5MP
HD CCTV Hybridoptager, 16 kanal, TVI/CVI/AHD/Analog/IP, 5MP
CCTV XVR hybridoptager til videoovervågning. Du kan tilslutte ethvert TVI / CVI / AHD / analogt og IP-kamera, og optageren registrerer automatisk den type kameraer, der er tilsluttet (vi anbefaler TVI-kameraer, se til... Se mere
0 stk på lager
8 stk på fjernlager - Forventet levering om ca. 1-3 hverdage
Produktbeskrivelse
Produktbeskrivelse
CCTV XVR hybridoptager til videoovervågning. Du kan tilslutte ethvert TVI / CVI / AHD / analogt og IP-kamera, og optageren registrerer automatisk den type kameraer, der er tilsluttet (vi anbefaler TVI-kameraer, se tilbehør). Understøtter meget høj optagelsesopløsning på op til 5MP. Bare monter en standard 3,5" SATA HDD (se tilbehør) og vælg dine optagelsespræferencer. Derefter vil du have en professionel og pålidelig CCTV-optagelsesløsning, der sender alarm push-beskeder til din smartphone, når en (bevægelsesdetektering) alarm udløses.
Denne harddiskoptager har alle de professionelle funktioner, der er nødvendige overvågning i virksomheder, den er brugervenlig, driftsstabil og kommer til en særdeles attraktiv pris.
Egenskaber:
- Understøtter AHD / CVI / TVI 2.0/TVI 3.0 / IP / analog kamerainput
- Optager i op til HD 5MP og IP 5MP opløsning
- Understøtter menneske genkendelse
- Understøtter HDMI-, VGA- og komposit videoudgang
- For tilslutning af op til 16 HD eller 16 IP kameraer (eller en kombination af de to typer)
- Understøtter 2 x SATA HDD (op til 16 TB kapacitet)
- Auto-genstart ved strømudfald
Tekniske detaljer:
- System:
- Hovedprocessor: MC6650
- Operativsystem: Embedded LINUX
- Video:
- Understøttede signaltyper: Analog/AHD/CVI/TVI 2.0/TVI 3.0/Netværk
- Indgangssignalkapacitet:
- Normal analog tilstand: 16 x (TVI/AHD: 5M@12fps; AHD/TVI/CVI: 4M@15fps; AHD/TVI: 3M; AHD/TVI/CVI: 1080P/720P; Analog: 960H)
- Analog + netværkstilstand: 2 x Analog (5MP) +14 x netværk (maks. 8MP), 4 x Analog (5MP) +12 x netværk (maks. 8MP), 6 x Analog (5MP) +10 x netværk (maks. 8MP), 8 x Analog (5MP) + 8 x netværk (maks. 8MP), 10 x Analog (5MP) + 6 x netværk (maks. 8MP), 12 x Analog (5MP) + 4 x netværk (maks. 8MP) , 14 x Analog (5MP) + 2 x netværk (maks. 8MP)
- Netværkstilstand: 16 x 8MP/5MP/4MP/3MP/1080P/960P/720P (samlet indgående båndbredde <80M)

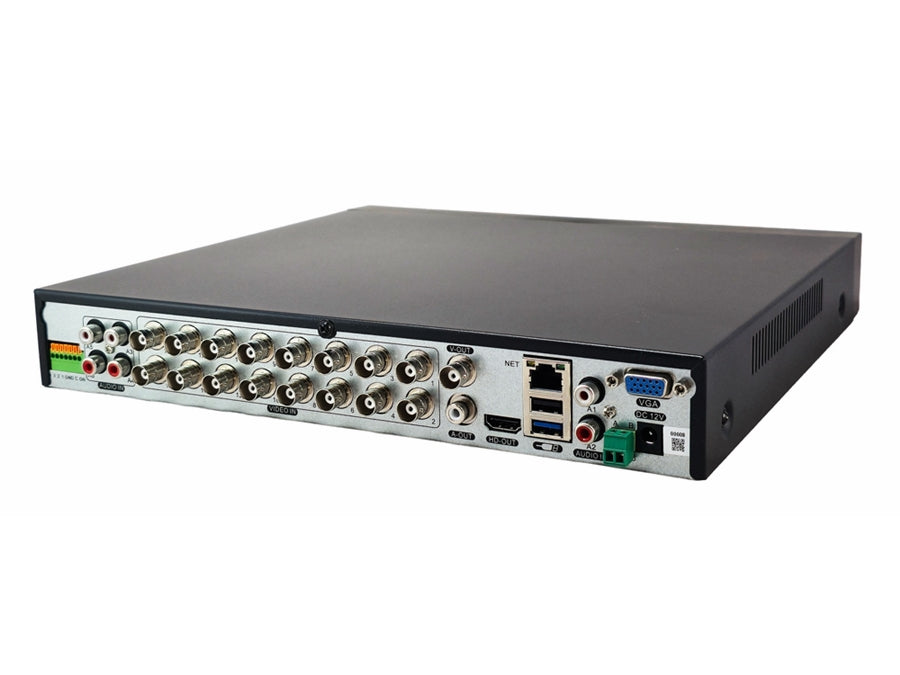

- Indgangsstik: 16CH BNC
- Udgangsstik: 1 x HDMI, 1 x VGA, 1 x CVBS
- Lyd:
- Indgang: 6 -kanals RCA (understøtter AOC)
- To-vejs lyd: Nej
- Udgang: 1 kanal RCA
- Alarm:
- Sensorindgange: 4
- Udgang: 1
- Bevægelsesregistrering: 16 kanaler
- Triggerhændelser: Optagelse, e -mail, skærmtip, summer, push -meddelelser (bevægelsesdetektering)
- E-mailalarm: Send billede til den angivne e-mail
- AI function:
- Menneske detektion: Ja
- PTZ:
- Grænseflade: RS485
- Protokol: Pelco-D, Pelco-P
- Baudrate: 110 ~921600
- Adresse: 0 ~255
- Skærm:
- VGA -opløsning: 1920x1080P/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
- HDMI-opløsning: 1920x1080P/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
- Display Split: 1/4/8/9/16
- Privacy Masking: 3 rektangulære zoner (hvert kamera)
- OSD: Kameratitel, Tid, Videotab, Alarm, Bevægelsesregistrering, Optagelse
- Optagelse:
- Videokomprimering: H.265/H.265+/H.264/H.264+
- Lydkomprimering: G.711u / G.711a / AAC
- Opløsning: 5MP_Lite (1296 × 1952), 4MP_Lite (1280 × 1440), 3MP_Lite (1024 × 1536), 1080N (960 × 1080), 720P (1280 × 720), 960H (P: 960 × 576/N: 960 × 480 )
- Videokvalitet: Lavest/Lav/Almindelig/God/Bedre/Bedst
- Optagehastighed:
- Analog PAL: 5MP_Lite (1296 × 1944 4*8fps), 4MP_Lite (1280 × 1440 4*15fps), 3MP_Lite (1024 × 1536 4*18fps), 1080N (960x1080 4*18fps), 720P (1280 × 720 4*20fps) , 960H (960 × 480 4*25fps)
- Ren IP (H.265) PAL: 5MP@8 × 25fps, 4MP@9x25fps, 3MP@9 × 25fps, 1080P@9 × 25fps, 960P@9 × 25fps, 720P@9 × 25fps, D1@9 × 25fps
- Optagelsestilstand: Manuel \ Timer \ Bevægelsesregistrering
- Afspilning og sikkerhedskopiering:
- Afkodningskapacitet: 4 x 1080P ved 30fps
- Synkroniser afspilning:
- Ren analog: 16CH 960H@25fps, 16CH 720P@15fps, 16CH 1080N@15fps, 16CH 5M_LITE@6fps, 16CH 4M_LITE@8fps, 16CH 3M_LITE@10fps
- Blandingstilstand: 4CH D1@25fps, 4CH 1080P@25fps, 1CH 8MP@30fps
- Rent netværk: 4CH D1@25fps, 4CH 1080P@25fps, 1CH 8MP@30fps
- Fjern afspilning: 4 kanaler (1 kanal
- Søgetilstand: ALLE, Kanal, Manuel, Tid, Dato, Bevægelsesregistrering
- Afspilningsfunktioner: Afspilning, Pause, Stop, Hurtig afspilning, Langsom afspilning, Spol tilbage, Enkelt billede frem/tilbage, Digital zoom, Fuld skærm
- Smart telefonafspilning: 4 kanaler
- Backuptilstand: USB -enhed (med fomat FAT 32) / netværk / FTP
- Netværk:
- Interface: 1 x RJ45 10M/100M adaptivt Ethernet -interface
- Netværksfunktioner: TCP/IP, HTTP, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTP, RTSP, RTCP
- DDNS: Dyndns, changeip, no-ip, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES, ZEBEYE, HDPROVN, DYNAMIC_PLANET, EASY_PLANET
- Webbrowser: IE8-11, Google Chrome, Firefox
- CMS -software: Understøtter Windows 7/ 8/ 10/ 11
- Ekstra Stream: CIF/D1 (1 ~30fps)
- Smart Phone: iPhone, iPad, Android, Android pad
- Harddisk driver:
- Interfacetype: 2 SATA -interface
- Kapacitet: 1 x SATA harddisk (2,5"/3,5" SATA, op til 16 TB, se tilbehør)
- Generel:
- OSD sprogvalg: Engelsk, forenklet kinesisk, traditionel kinesisk, polsk, tjekkisk, russisk, thai, hebraisk, arabisk, bulgarsk, japansk, tysk, fransk, portugisisk, turkisk, spansk, italiensk, ungarsk, rumænsk, koreansk, hollandsk, græsk, vietnamesisk
- UTC -kontrol: Ja
- USB -interface: 2 x USB 2.0
- Strømforsyning: 12Vdc / 4A (netadapter medfølger)
- Operationel temperatur: -10...55°C
- Driftsfugtighed; 10...90%
- Størrelse (B × D × H): 310x295x46mm
- Vægt: 4kg (uden HDD)
CCTV hybrid recorder for surveillance recording. You can connect any TVI / CVI / AHD / Analog and IP camera, and the recorder automatically detects the type of cameras connected (we recommend TVI cameras, see accessories). Supports Very high recording resolution up to 5MP. Just mount a standard 3.5" or 2,5" SATA HDD (see accessories) and select your recording preferences. Then you will have a professional and reliable CCTV recording solution which will send alarm push-messages to your smartphone when a (motion detection) alarm is triggered.
This hard disk recorder has all the basic functions needed for home surveillance. It is also perfect for small businesses looking for a simple and price attractive surveilance solution.
Features:
- Support AHD / CVI / TVI 2.0/TVI 3.0 / IP / Analog Camera Input
- Up to HD 5MP and IP 5MP Resolution Recording
- Support Human detection
- Support HD and VGA Video Output
- Support Max. 16CH HD or 16CH IP Camera Input
- Support 2 SATA up to 16TB capacity
Specifications:
- System:
- Main Processor: MC6650
- Operating System: Embedded LINUX
- Video:
- Supported signal types: Analog/AHD/CVI/TVI 2.0/TVI 3.0/Network
- Input signal capacity:
- Normal Analog mode: 16 x (TVI/AHD: 5M@12fps; AHD/TVI/CVI: 4M@15fps; AHD/TVI: 3M; AHD/TVI/CVI: 1080P/720P; Analog: 960H)
- Analog+Network mode: 2 x Analog(5MP) +14 x network (max. 8MP), 4 x Analog(5MP) + 12 x network(max. 8MP), 6 x Analog(5MP) +10 x network(max. 8MP), 8 x Analog(5MP) + 8 x network(max. 8MP), 10 x Analog(5MP) + 6 x network(max. 8MP), 12 x Analog(5MP) + 4 x network(max. 8MP), 14 x Analog(5MP) + 2 x network(max. 8MP)
- Network: 16 x 8MP/5MP/4MP/3MP/1080P/960P/720P (Total incoming bandwidth ?80M)
- Input connectors: 16CH BNC
- Output: 1 x HDMI, 1 x VGA, 1 x CVBS
- Audio:
- Input: 6 channel RCA (support AOC)
- Two-way Audio: No
- Output: 1 channel RCA
- Alarm:
- Sensor Input: 4
- Output: 1
- Motion Detection: 16 channel
- Trigger Events: Recording, Email, Screen tips, Buzzer, Push notifications (motion detection)
- Email Alarm: Send Image to The Designated E-mail
- AI function:
- Human Detection: Yes
- PTZ:
- Interface: RS485
- Protocol: Pelco-D, Pelco-P
- Baud Rate: 110~921600
- Address: 0~255
- Display:
- VGA resolution: 1920x1080P/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
- HD output resolution: 1920x1080P/60Hz, 1280x1024/60Hz, 1280x720/60Hz,1024x768/60Hz
- Display Split: 1/4/8/9/16
- Privacy Masking: 3 rectangular zones (each camera)
- OSD: Camera title, Time, Video loss, Alarm, Motion detection, Recording
- Recording:
- Video Compression: H.265/H.265+/H.264/H.264+
- Audio Compression: G.711u / G.711a / AAC
- Resolution: 5MP_Lite (1296×1952), 4MP_Lite (1280×1440), 3MP_Lite (1024×1536),1080N (960×1080), 720P (1280×720), 960H (P:960×576/N:960×480)
- Video Quality: Lowest/Low/Ordinary/Good/Better/Best
- Record Rate:
- Analog PAL: 5MP_Lite (1296×1944 4*8fps), 4MP_Lite (1280×1440 4*15fps) ,3MP_Lite (1024×1536 4*18fps), 1080N (960x1080 4*18fps), 720P (1280×720 4*20fps), 960H (960×480 4*25fps)
- Pure IP (H.265) PAL: 5MP@8×25fps ,4MP@9x25fps, 3MP@9×25fps, 1080P@9×25fps, 960P@9×25fps, 720P@9×25fps,D1@9×25fps
- Record Mode: Manual\Timer\Motion Detection
- Playback & Backup:
- Decode Capability: 4CH 1080P@30fps
- Sync Playback:
- Pure Analog: 16CH 960H@25fps, 16CH 720P@15fps, 16CH 1080N@15fps, 16CH 5M_LITE@6fps, 16CH 4M_LITE@8fps, 16CH 3M_LITE@10fps
- Mixture mode: 4CH D1@25fps, 4CH 1080P@25fps, 1CH 8MP@30fps
- Pure Network: 4CH D1@25fps, 4CH 1080P@25fps, 1CH 8MP@30fps
- Remote Playback: 4 channel ( 1 channel
- Search Mode: ALL, Channel, Manual, Time, Date, Motion Detection
- Playback Functions: Play, Pause, Stop, Fast play, Slow play, Rewind, Single frame forward/back, Digital Zoom, Full screen
- Smart Phone Playback: 4 Channel
- Backup Mode: USB Device (with fomat FAT 32 ) / Network / FTP
- Network:
- Interface: 1 x RJ45 10M/100M Adaptive Ethernet Interface
- Network Functions: TCP/IP, HTTP, UPnP, DNS, NTP, SMTP,DHCP, FTP, DDNS, RTP, RTSP, RTCP
- DDNS: Dyndns, changeip, no-ip, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES, ZEBEYE, HDPROVN, DYNAMIC_PLANET,EASY_PLANET
- Web Browser: IE8-11, Google Chrome, Firefox
- CMS Software: Support Windows 7/ 8/ 10 / 11
- Extra Stream: CIF/D1(1~30fps)
- Smart Phone: iPhone, iPad, Android, Android pad
- Hard Disk Driver:
- Interface Type: 2 SATA Interface
- Capacity: 1 x SATA Hard Disk (2.5"/3.5" SATA, Up to 16TB, see accessories)
- General:
- Language: English, Simplified Chinese,Traditional Chinese, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, Japanese, German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, korean, Dutch, Greek, Vietnamese
- UTC Control: Yes
- USB Interface: 2 x USB 2.0
- Power supply: 12VDC / 4A (adapter included)
- Operating temperature: -10...55°C
- Operating humidity; 10...90%
- Dimensions (W×D×H): 310 x 295 x 46mm
- Weight: 4 kg (without HDD)
