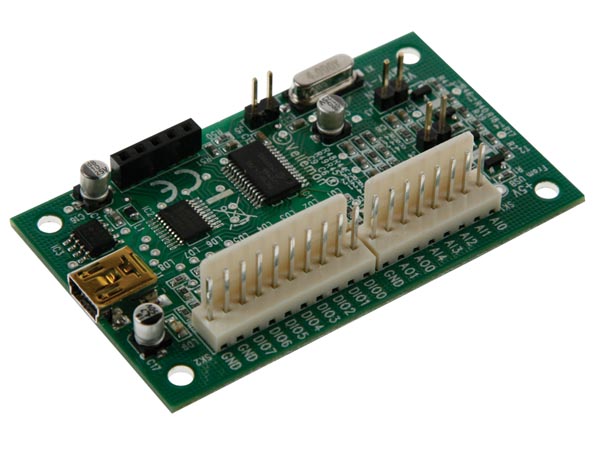

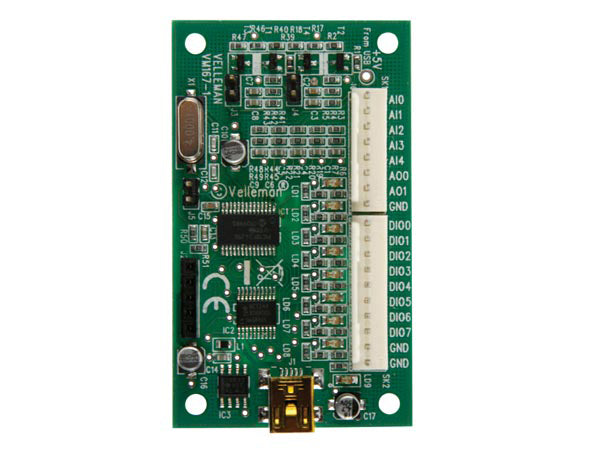

WMI167 - Mini USB interface kort

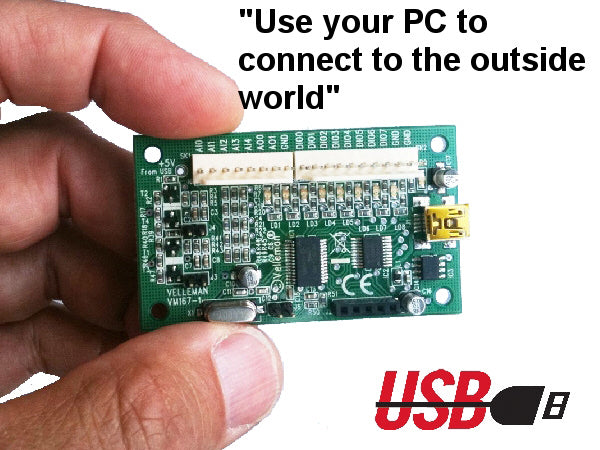

Brug din PC til styring af eksterne enheder! Kompakt, universal USB strømforsynet og styret I/O modul. Velgnet for tilføjelse af et USB interface ti eksisterende udstyr. Test software og eksempler kan downloades på via www.velleman.eu.

Egenskaber:

• 15 inputs / outputs, including analogue inputs / digital inputs/outputs and PWM outputs
• The number of inputs/outputs can be further expanded by connecting two cards to the PC's USB connectors
• All communication routines are contained in a Dynamic Link Library (DLL)

Tekniske detaljer:

• 5 x analogue 10 bit resolution inputs: 0…5V / (30K)
• 8 x digital 5V inputs/outputs with on-board LED indication: Input/output mode is selectable in groups of 4 terminals
• 1 x 32 bit pulse counter up to 1MHz input frequency
• 2 x 8 bit 5V PWM outputs: 0 to 100%
• On-board LED indication for I/O and PWM outputs
• Output current, PWM: 10mA / Digital outputs: 6mA
• Up to 2 cards can be connected to one PC
• USB port: USB 1.1 & 2.0 compatible
• DLL supports Windows XP, Windows Vista and Windows 7*
• PWM frequency selection: 2930Hz,11.7kHz or 46.9kHz
• Command execution time, read:
  • Read: 4ms
  • Write: 1ms
• Power consumption through USB port: approx. 50mA
• Størrelse: 68 x 40mm

Ekstra:

• >You may write custom Windows* Applications in Microsoft Visual Basic, Microsoft VC, Borland Delphi, Borland C++ Builder or most other 32-bit Windows application development tool that supports calls to a DLL
• *Microsoft Windows XP, Windows Vista and Windows 7 are registered trademarks of Microsoft Corporation
